VLX 100 Pivot Door

VLX 100 Pivot Door in West Palm Beach, FL | Meridian Windows and Doors West Palm Beach

The VLX 100 Pivot Door is a heavy-duty aluminum pivot door that rotates on a vertical center axis instead of traditional side hinges. It’s built for homeowners in West Palm Beach who want a genuine architectural statement: oversized glass, clean sightlines, and a door that feels substantial every time you push it open. Meridian Windows and Doors West Palm Beach is an authorized ViewLux installation partner, which means you get the product direct from a certified source and installation that keeps the manufacturer warranty intact. Call (728) 728-9381 to talk specs, pricing, or scheduling a free measurement at your West Palm Beach home.

Call (728) 728-9381

Product Overview – VLX 100 Pivot Door

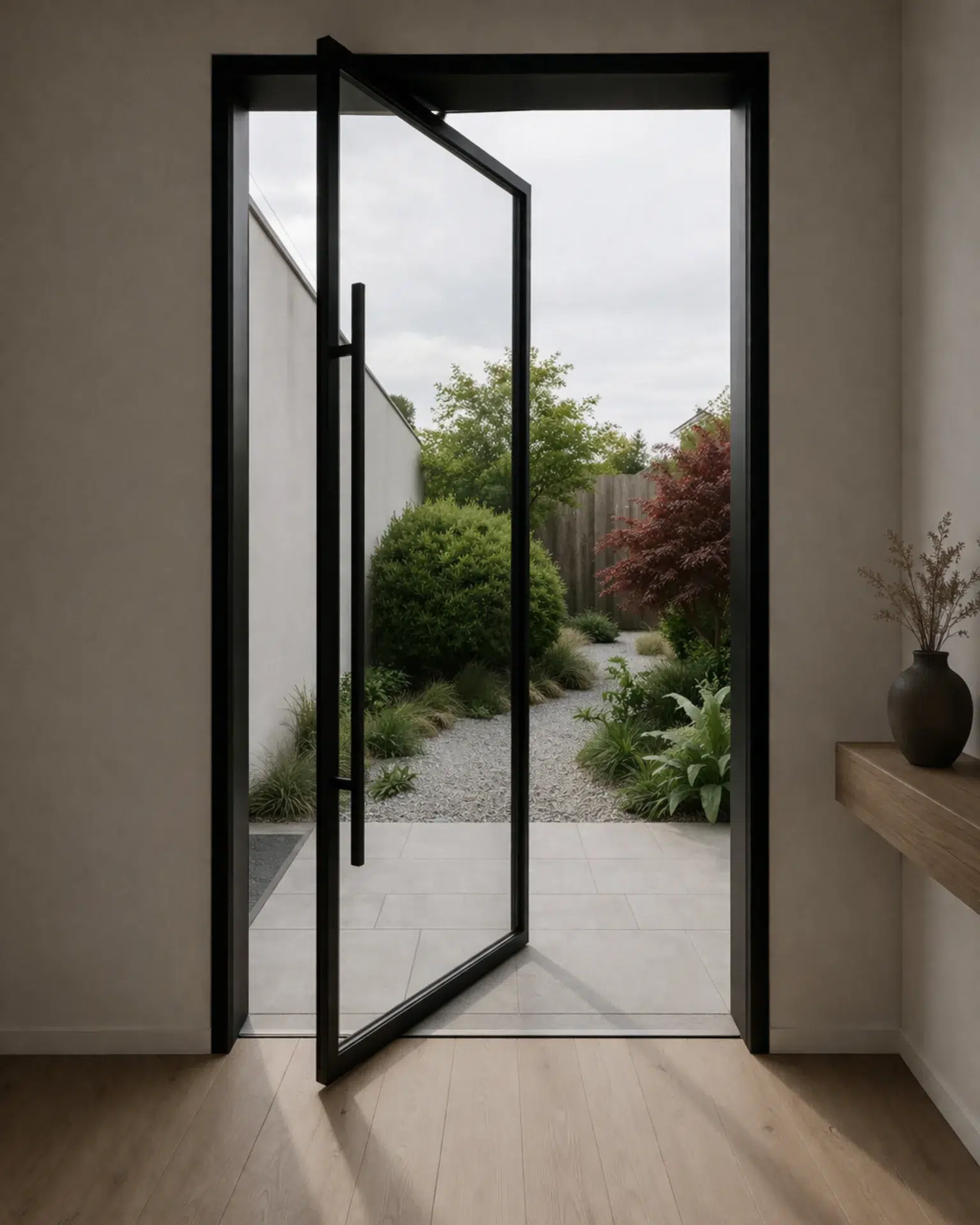

The VLX 100 Pivot Door is a heavy-duty aluminum pivot door built for architectural impact. Instead of hanging from side hinges, the entire panel rotates on a vertical center axis. That changes how the door feels and how it functions. A pivot door can be wider and taller than a typical hinged door because the weight distributes through the floor and header pivot points rather than pulling on a frame corner. In West Palm Beach, where indoor-outdoor living drives design decisions, a pivot door becomes the transition point between a great room and a lanai, courtyard, or pool deck.

Buyers choose this line for three reasons: scale, glass, and presence. The aluminum frame is substantial without being bulky, which lets the glass dominate the visual field. The door reads as a clean architectural plane, not a traditional entry with mullions and hardware clutter. That’s why we see it installed in modern concrete-block homes in El Cid, mid-century remodels in Flamingo Park, and new builds in Ibis and Mirasol where the entry sets the tone for the rest of the house.

The engineering underneath the aesthetic matters just as much. The aluminum profile carries the weight without flexing. The pivot hardware is engineered for thousands of open-close cycles. And because Meridian Windows and Doors West Palm Beach installs these units per AAMA structural standards, the door performs in Florida wind conditions the way it’s rated to.

Technical Specifications

• Wall thickness: 0.098 inch extruded aluminum, substantial enough for large panels without adding visual weight
• Profile width: 2.56 inches, slim enough for clean sightlines but deep enough for structural stiffness
• Maximum span: panels up to 60 inches wide by 120 inches tall, roughly 5 feet by 10 feet of glass and aluminum
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Thermal performance: Thermal break technology with NFRC-rated energy performance data available per configuration
• Impact rating: Laminated impact-resistant glass available for wind-borne debris zones
• Installation standard: AAMA 2400/2410 compliant installation, AAMA 812 low-expansion foam at all perimeter joints

Performance Features

Thermal Efficiency. The VLX 100 uses thermal break technology to separate the interior and exterior aluminum faces. That break slows heat transfer through the frame itself, which matters during West Palm Beach summers when an unbroken aluminum frame can become a heat conductor into your air-conditioned space. NFRC-rated performance data lets us spec the right glass package for your exposure.

Acoustic Performance. Pivot doors mate with a full-perimeter seal when closed, which gives them better sound control than a traditional hinged door with a single weatherstrip line. If you live near Federal Highway, I-95, or the Brightline corridor, laminated glass adds another layer of noise reduction that frosted or clear glass alone won’t provide.

Airtightness and Weather Seal. The pivot system compresses the slab against the frame on all four sides when closed, creating a tighter air seal than a standard hinge door. This is a real benefit in West Palm Beach’s humid climate, where air leakage translates directly into higher cooling costs and moisture intrusion.

Waterproofing. Every installation by Meridian Windows and Doors West Palm Beach gets AAMA 812 low-expansion foam on all perimeter joints. That foam expands to fill the rough opening completely, then we seal the exterior with a compatible flashing system. The result is a watertight perimeter that handles the afternoon downpours Palm Beach County gets from May through October.

Wind Resistance. A pivot door carries wind load differently than a hinged door because the slab is connected at top and bottom, not along one edge. The VLX 100 is wind-load rated for local climate requirements, and with laminated impact glass it becomes part of a hurricane-protection strategy rather than a weak point in your envelope.

Security and Hardware. The pivot mechanism itself resists forced entry better than traditional hinge hardware because there’s no exposed hinge pin to attack. Multi-point locking hardware is available, and the aluminum frame is thick enough to seat a deadbolt properly. In West Palm Beach, where many homes have front entries set back from the street, that matters.

Color and Glass Options

The VLX 100 comes in six finishes. Premium Black reads as contemporary and works beautifully on white stucco or concrete-block homes throughout West Palm Beach, especially in neighborhoods like SoSo and Southland Park where modern design is taking over. Pure White disappears into bright coastal facades and pairs naturally with Palm Beach-style architecture. Anodized Silver has the most industrial, commercial-modern feel and holds up extremely well in salt air. Bronze leans warm and traditional, a good alternative to black for Mediterranean-style homes. Champagne offers a softer metallic warmth that bridges modern and transitional. Teak Wood brings an organic texture to the frame that works on both modern and Bahamian-inspired West Palm Beach homes.

Glass selection depends on your priorities. Clear glass maximizes the view and works for interior pivot doors or entries where privacy isn’t a concern. Frosted glass diffuses light and obscures sight lines, ideal for a front door on a busy street. Obscure glass takes privacy further with patterned diffusion. Low-E glass does the heavy lifting on energy performance, cutting solar heat gain during West Palm Beach’s long cooling season. Tempered glass meets safety glazing codes for door panels. Laminated impact glass is the one to choose if you want wind-borne debris protection and maximum sound dampening in a single package.

Installation by Meridian Windows and Doors West Palm Beach in West Palm Beach

We install every VLX 100 Pivot Door the same way, whether the job is a new construction in Palm Beach Gardens or a retrofit in a 1950s ranch in Westgate. The process starts with a pre-install site inspection. We measure the rough opening, check the floor for level, verify the header condition, and confirm the substrate can accept the pivot hardware. A pivot door carries hundreds of pounds, so the floor and header anchors have to be right. If they’re not, we correct them before the door ever arrives.

On install day, we set the frame level, plumb, and square, then anchor it per AAMA 2400/2410 installation standards. The door doesn’t get forced into an out-of-square opening, ever. That’s how pivot binding happens, and it’s the fastest way to destroy the operating feel of the door. We run AAMA 812 low-expansion foam around the entire perimeter, let it cure, and trim it clean. Then we flash and seal the exterior per manufacturer spec.

Every pivot door install in West Palm Beach gets a final water test before we call the job done. We don’t skip this step, even on covered entries. Florida’s driving rain finds openings that look perfectly sealed. The water test catches them before your floors do. After the test, we clean the glass, remove every scrap of packaging, and walk you through operation and maintenance. Improper installation voids the ViewLux manufacturer warranty, which is reason enough to use a professional crew. But the bigger reason is that a pivot door installed wrong will bind, leak, or sag within a year. We’d rather you never learn what that costs to fix.

Frequently Asked Questions – VLX 100 Pivot Door

Get a Quote – VLX 100 Pivot Door in West Palm Beach

The fastest way to get an accurate price is an on-site measurement at your West Palm Beach home. We’ll confirm your rough opening, discuss glass and finish options, and give you a written line-item quote with no surprises later. Call (728) 728-9381 to schedule your free measurement and quote.

Written by the team at Meridian Windows and Doors West Palm Beach, authorized ViewLux installation partner serving West Palm Beach, FL.
