If you’re planning a remodel or new build in West Palm Beach and want to erase the line between your living room and the outdoors, the VLX 138 Panoramic Sliding Door is the conversation starter. This is a large-span aluminum slider built for openings up to 36 feet wide, with a 0.138-inch wall thickness that puts it in a different class than the builder-grade doors you’ll find at big-box stores. Meridian Windows and Doors West Palm Beach is an authorized ViewLux installation partner, which means you get the product exactly as engineered, installed correctly, and backed locally. Call (728) 728-9381 to schedule a free on-site measurement and see what this door looks like in your actual opening.

Call (728) 728-9381

Product Overview – VLX 138 Panoramic Sliding Door

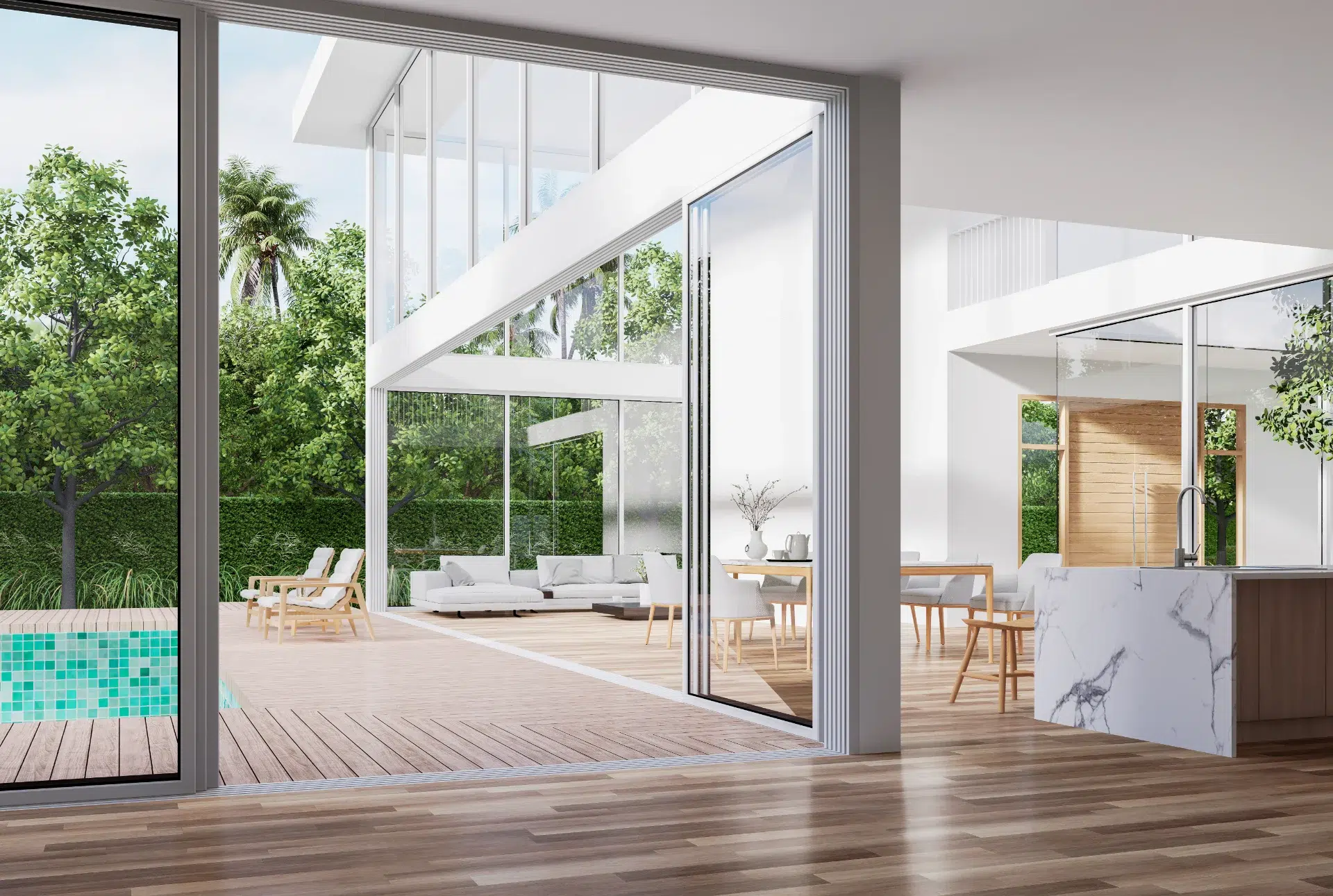

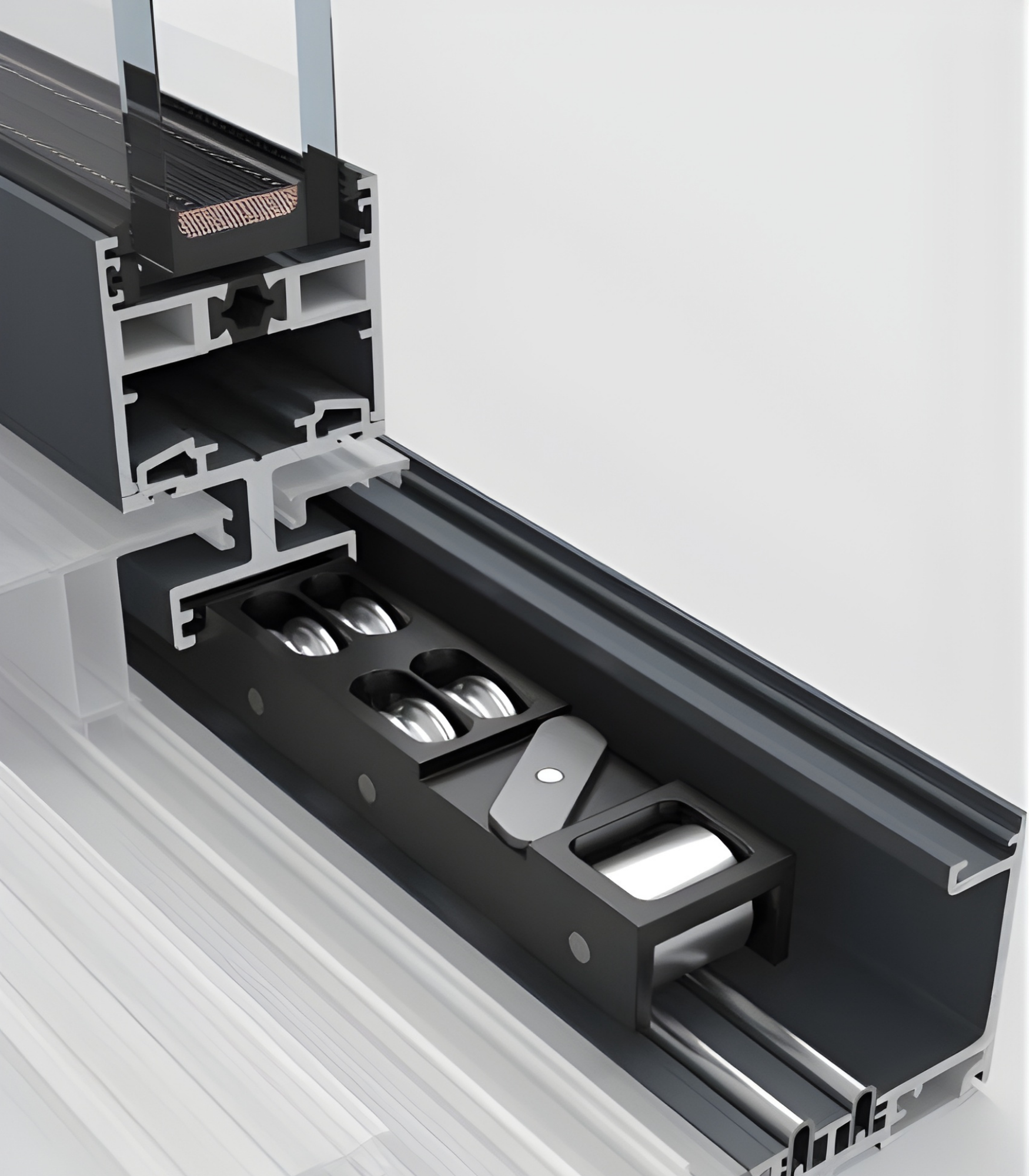

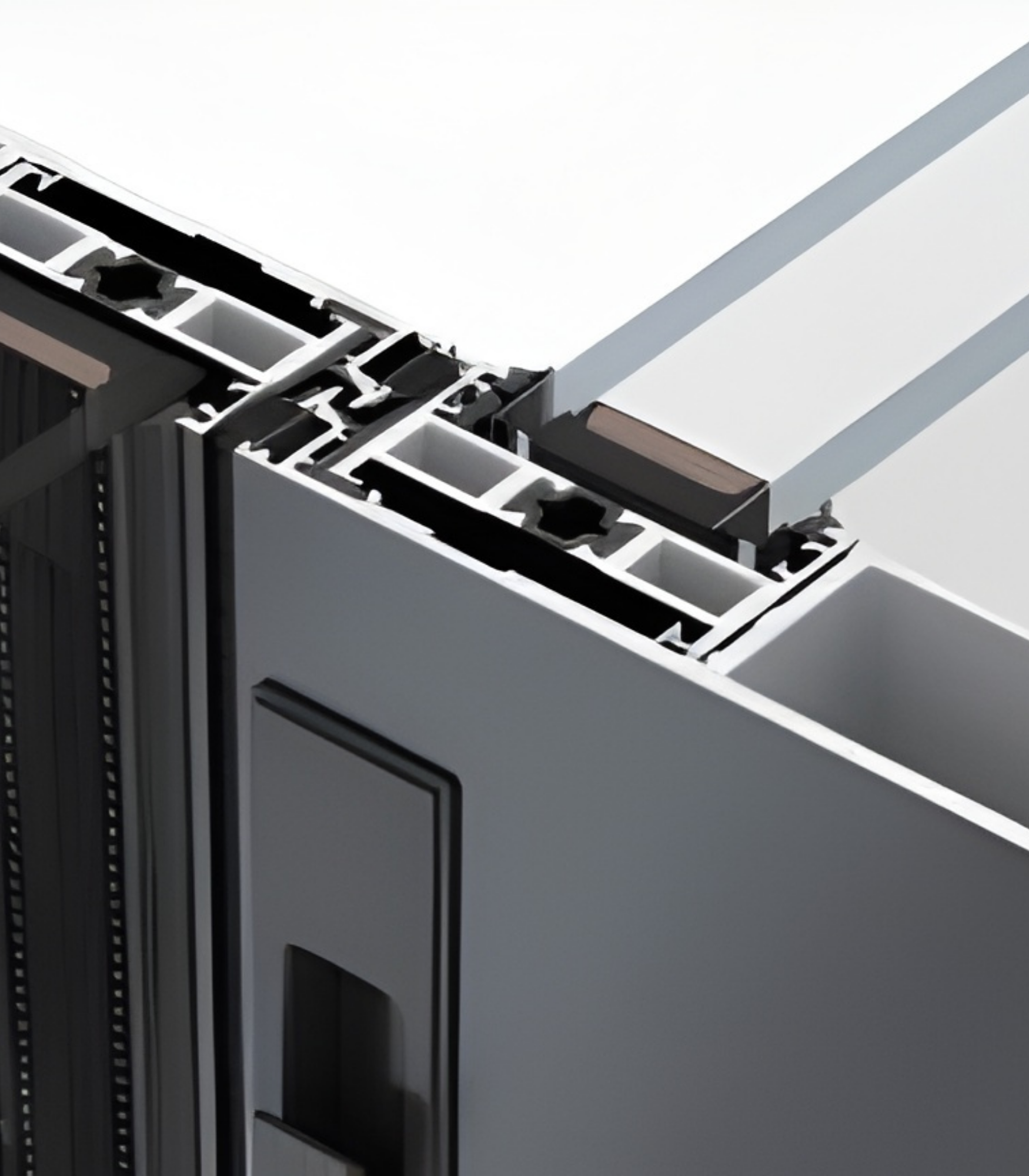

ViewLux designed the VLX 138 series for people who want the view to be the main event. The profile is slim at 1.535 inches wide, which maximizes glass area and minimizes the metal frame you see. When the panels stack, the sightlines stay clean and architectural. The door glides on stainless ball bearings, so even a 300-pound panel moves with one hand. Our clients in West Palm Beach choose this series for waterfront homes along Flagler Drive, modern builds in El Cid, mid-century updates in Northwood Hills, and high-rise condos downtown where the view is the asset. The engineering is straightforward: a thermally broken aluminum extrusion resists corrosion better than steel, handles our salt air better than wood, and holds its square over decades. The 0.138-inch wall thickness means the frame doesn’t flex under wind load or daily use. You get a door that feels solid when closed and nearly weightless when it slides.

Technical Specifications

We publish the full spec list because our clients in West Palm Beach ask for it. Here is what the VLX 138 actually delivers:

• Frame wall thickness: 0.138 inches. This is a heavy-duty aluminum extrusion, not a residential-grade hollow profile.

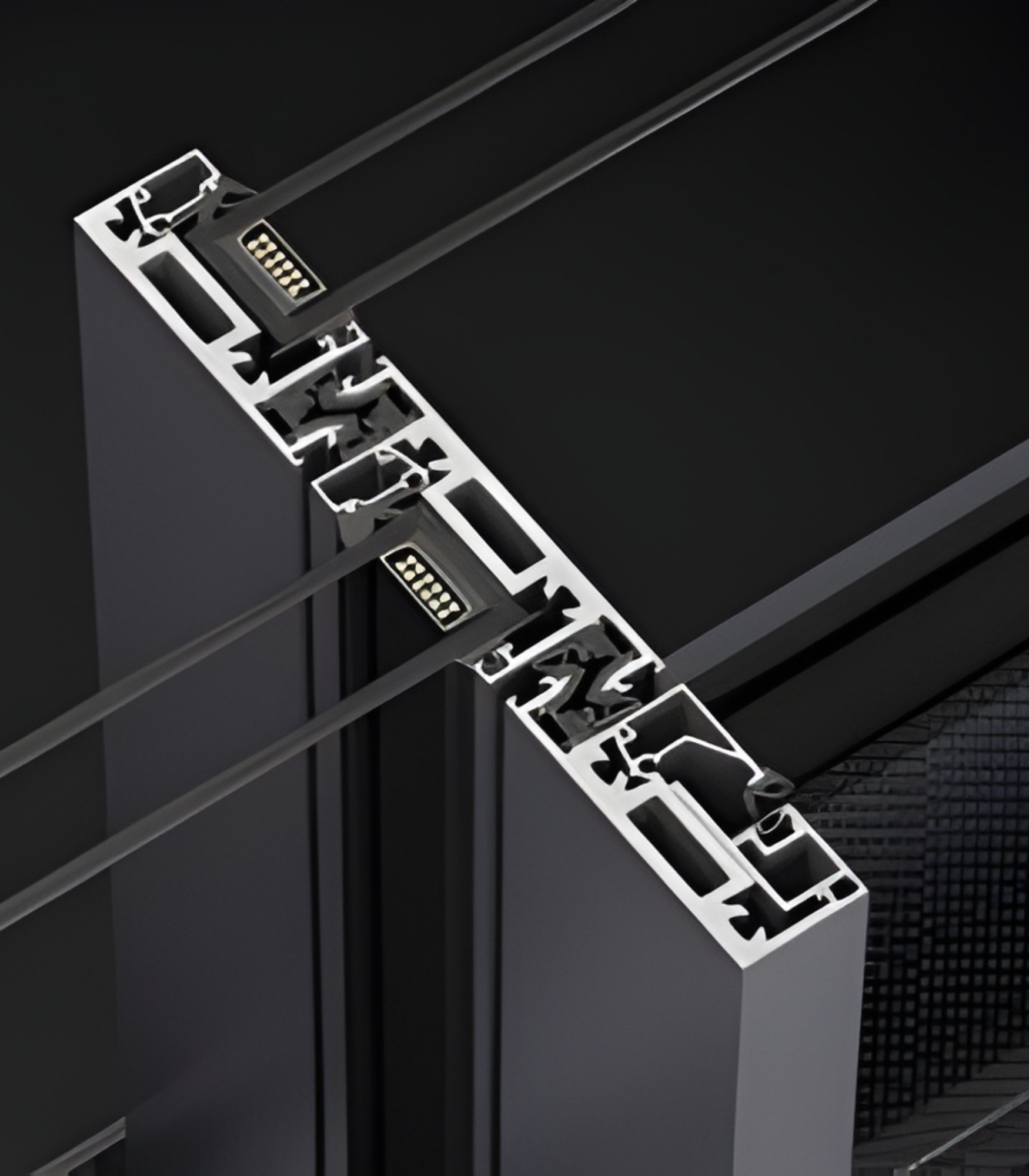

• Visible profile width: 1.535 inches. Slim enough to disappear, thick enough to be structurally sound.
• Maximum span: 36 feet across. That covers most full-wall openings in West Palm Beach luxury homes and commercial storefronts.
• Track configurations: 2-track for a two-panel slider, 3-track for three panels, 4-track for three or four panels with wider stacking options.
• Glass: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint. Impact-rated laminated glass is available for wind-borne debris zones.
• Frame finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood. Powder coat or anodized depending on the finish.
• Screens: Retractable screen that rolls into a hidden cassette, or a traditional sliding screen panel.

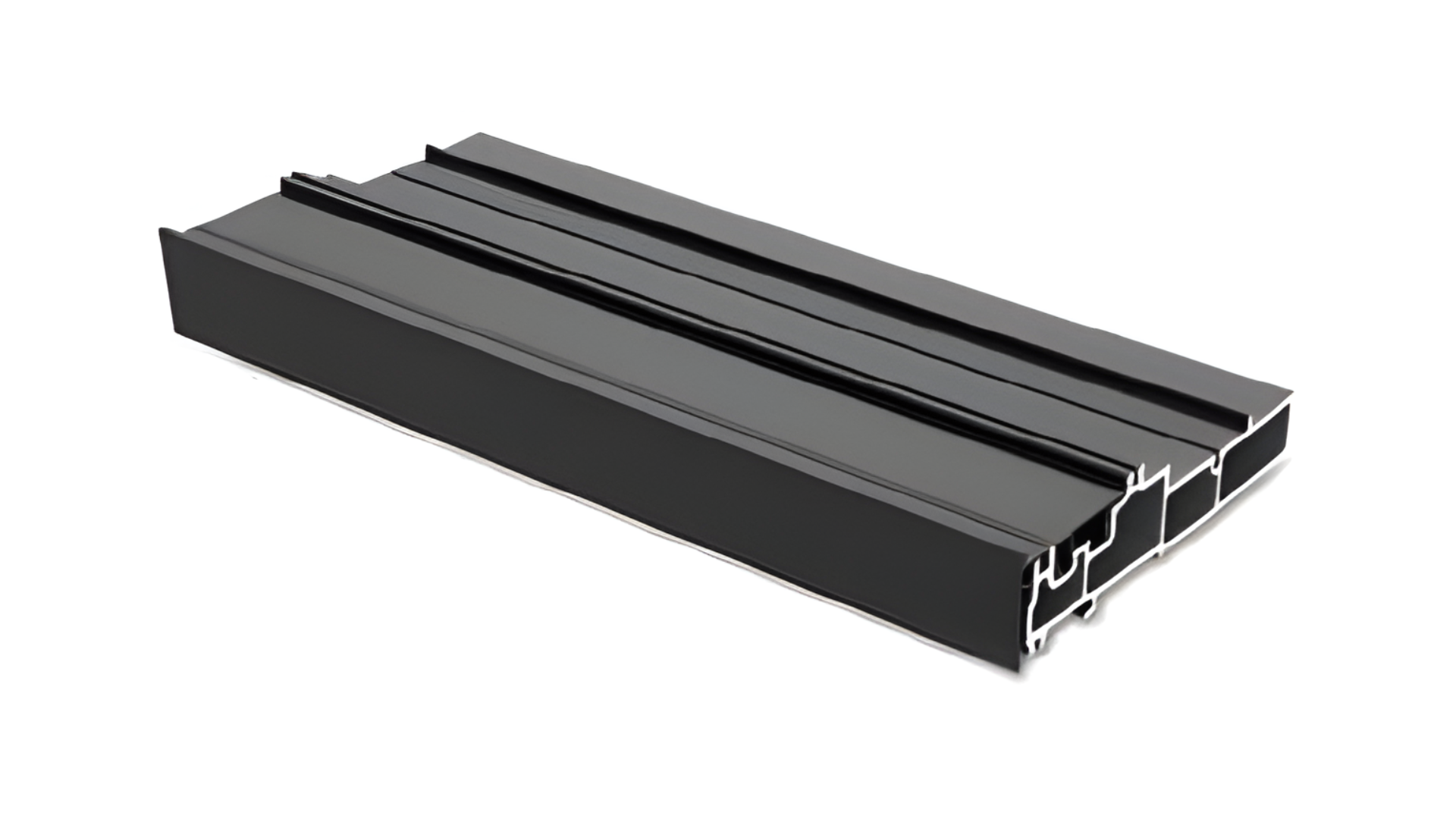

• Sill options: Flush sill for zero-threshold interior-to-exterior transitions, low-profile sill when you need a slight weather lip, recessed sill for new construction where the track sits into the slab.

All configurations meet AAMA 2400/2410 installation standards and are NFRC-rated for thermal performance when paired with Low-E glass.

Performance Features

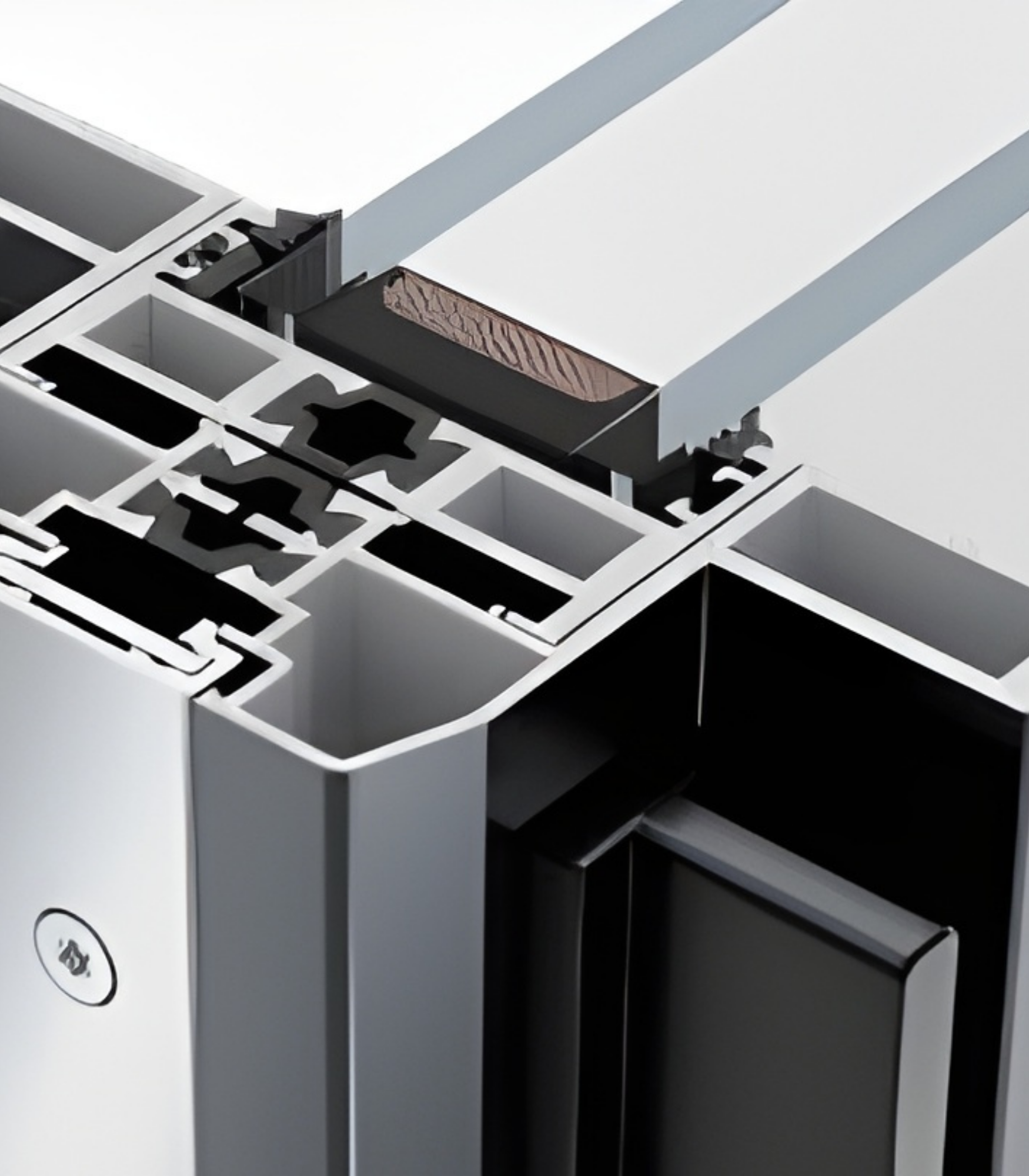

Thermal Efficiency – The VLX 138 uses a thermal break in the aluminum frame, which separates the interior and exterior metal so heat doesn’t conduct through. With Low-E glass, the assembly carries NFRC ratings that hold up to our West Palm Beach summers. You’ll feel the difference near the glass in August.

Acoustic Performance – The thicker 0.138-inch wall, double weatherstripping, and quality glazing reduce street noise. For homes on busy corridors like Southern Boulevard or near the Brightline tracks, laminated glass adds a meaningful sound-dampening layer.

Airtightness & Weather Seal – Every VLX 138 we install in West Palm Beach gets a continuous perimeter seal with AAMA 812 low-expansion foam. This keeps conditioned air in and humid outside air out. No drafts, no foggy glass, no whistling on windy afternoons.

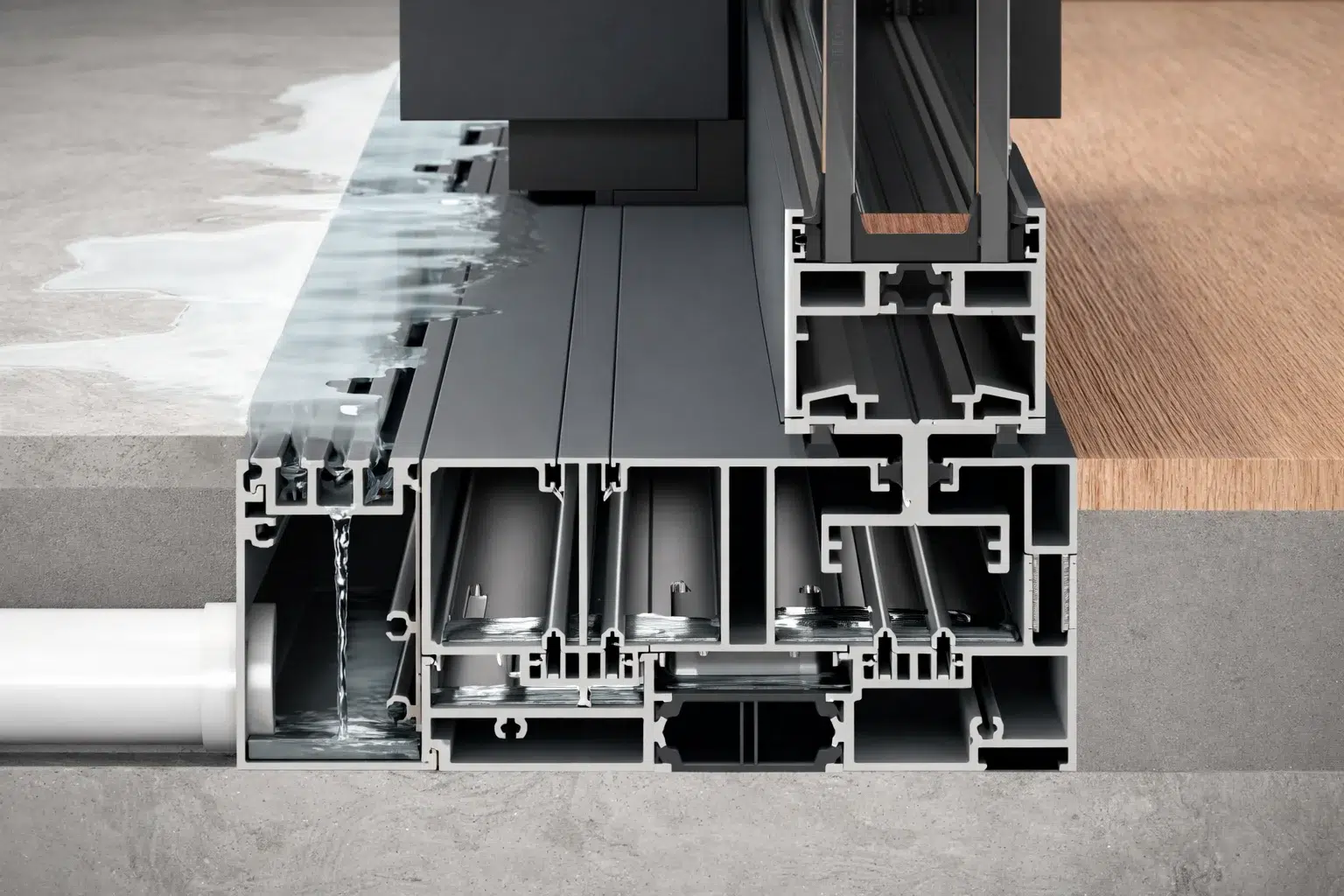

Waterproofing – The interlocking panel design channels water into the sill track where it drains out weep holes. Proper sill slope matters during installation, and our team checks the pan and drainage plane before the door ever goes in.

Wind Resistance – VLX 138 panels are wind-load rated for Florida coastal requirements. With impact-resistant laminated glass, the assembly can be configured to meet Miami-Dade and Palm Beach County standards for wind-borne debris zones.

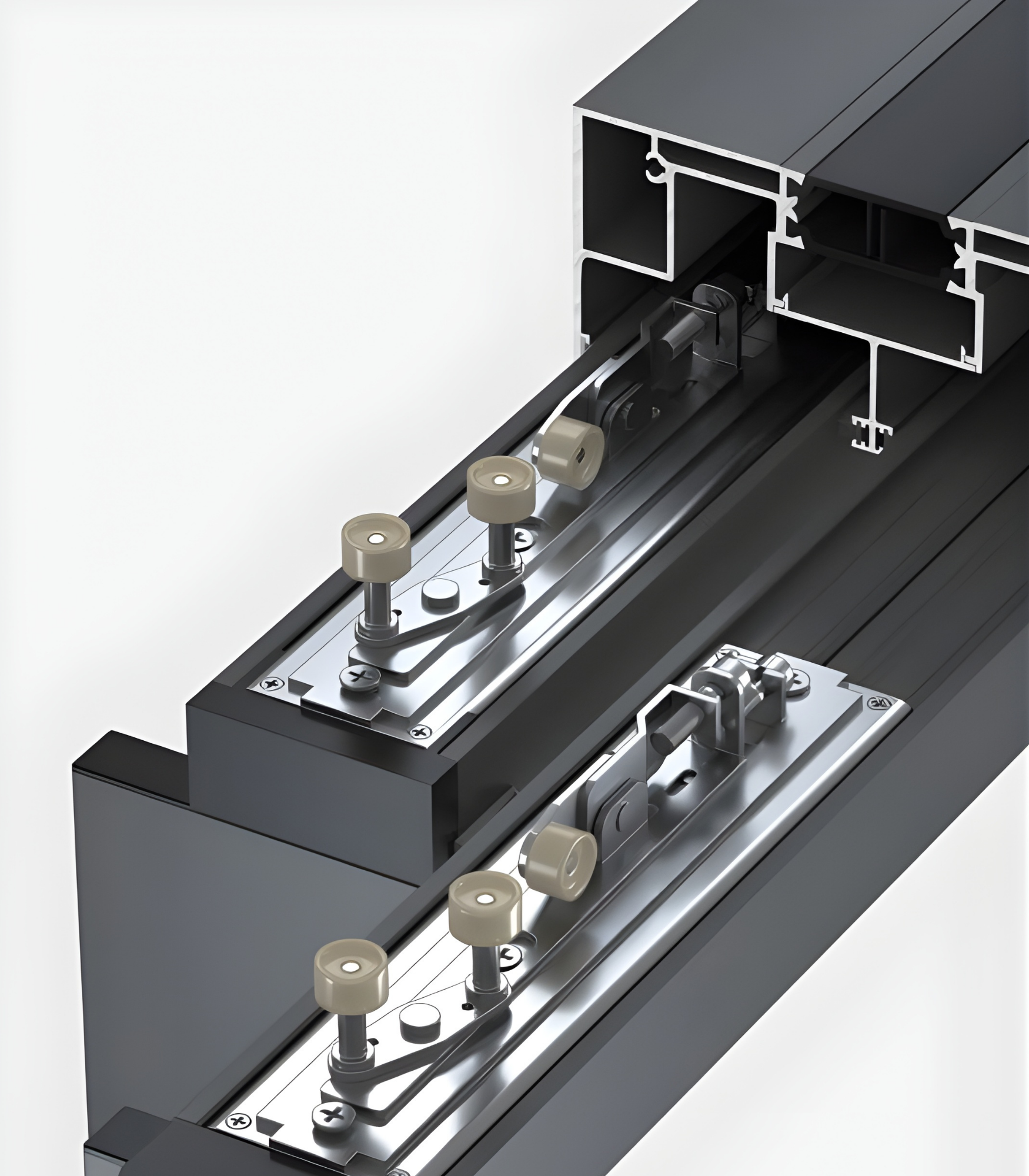

Security & Hardware – Multi-point locking hardware engages at the top, bottom, and center of the meeting stiles. The stainless bearing rollers sit in an enclosed track that resists lifting. We recommend a keyed lock on at least one panel for West Palm Beach homeowners who travel seasonally.

Color & Glass Options

The six frame finishes cover most design directions in West Palm Beach. Premium Black is the default choice for contemporary homes and works beautifully against white stucco or coastal landscaping. Pure White suits traditional Florida architecture and keeps interiors feeling bright. Anodized Silver has a raw aluminum look that works well in industrial and commercial settings. Bronze reads warm and grounded, popular in Mediterranean and Spanish-style homes. Champagne is a lighter metallic that pairs with travertine and beige stone. Teak Wood is a wood-grain finish that gives you the look of a wood door without the termite or rot risk we deal with constantly in South Florida.

For glass, Clear is the honest choice if you want zero tint. Low-E is what we recommend for most West Palm Beach installs because it cuts heat gain without darkening the view. Frosted and Obscure are for privacy, often used in bathrooms, street-facing bedrooms, or interior partition walls. Black Tint and Gray Tint add drama to a facade and reduce glare, though they do darken interiors. Impact-rated laminated glass is a thicker assembly that holds together if struck and is the right call for any opening in a wind-borne debris zone.

Installation by Meridian Windows and Doors West Palm Beach in West Palm Beach

A sliding door is only as good as the hole it goes into. We’ve pulled more poorly installed sliders out of West Palm Beach homes than we can count, doors that were never leveled, never sealed, and never flashed. The manufacturer’s warranty on a ViewLux VLX 138 presumes correct installation. If the door isn’t level, plumb, and square, the rollers wear unevenly, the locks won’t engage, and the thermal break is compromised. That’s why the installation matters as much as the door itself.

Our process starts with a pre-install inspection of the rough opening. We check the slab for flatness, verify the header is straight, and confirm the opening is properly flashed for our South Florida rain patterns. We set the frame level, plumb, and square, shimming only where needed and anchoring per manufacturer specs. We install to AAMA 2400/2410 standards, and we seal every perimeter joint with AAMA 812 low-expansion foam before applying the exterior sealant. We then run a water test on the sill and track, check the drainage, and cycle each panel several times to confirm smooth operation and proper alignment. The job ends with a clean worksite and a walkthrough so you know how to operate, lock, and maintain the door.

West Palm Beach sits in Miami-Dade and Palm Beach County permit territory. We handle the permitting and coordinate inspections when the project requires it. Impact-rated glass requirements depend on your specific address and elevation, and we’ll tell you honestly whether your opening needs it before you spend the money.

Frequently Asked Questions – VLX 138 Panoramic Sliding Door

What is the lead time for the VLX 138 Panoramic Sliding Door? Fabrication for a custom-sized VLX 138 typically takes 4 to 6 weeks from final measurement approval, plus installation scheduling. West Palm Beach orders move through ViewLux’s production queue, and we’ll give you a written timeline before you commit. Call (728) 728-9381 and we’ll confirm current lead times for your specific size and finish.

Does the VLX 138 qualify for energy tax credits? The door may qualify for federal energy tax credits when ordered with Low-E glass and an NFRC-certified thermal package. Eligibility depends on the final U-factor and solar heat gain coefficient for your specific configuration. We’ll provide the NFRC documentation with your order so your tax preparer can verify it.

What warranty comes with the Panoramic Sliding Door? ViewLux provides a manufacturer’s warranty on the aluminum frame, hardware, and glazing, and Meridian Windows and Doors West Palm Beach stands behind our installation work with a separate workmanship warranty. The manufacturer warranty presumes professional installation per AAMA standards, which is exactly how we install every door in West Palm Beach.

Can I customize the size? Yes. The VLX 138 is fabricated to your exact opening dimensions, up to 36 feet in total span. Custom sizes are standard on this series, and panel widths are engineered around your track configuration and glass weight. We measure every opening ourselves, so the door fits your structure, not a stock size.

How do I maintain aluminum frames? Wash the frames and track with mild soap and water every few months, and keep the track free of sand and debris. In West Palm Beach, salt air accelerates corrosion on cheap aluminum, but a powder-coated or anodized VLX 138 finish is designed for coastal exposure. We can supply touch-up kits and schedule annual hardware checks.

Get a Quote – VLX 138 Panoramic Sliding Door in West Palm Beach

The best way to see if the VLX 138 fits your home in West Palm Beach is to have us measure it. We’ll come to your property, walk the opening with you, talk through panel configurations, glass options, and finish choices, and give you a written line-item quote with no change orders later. Call (728) 728-9381 to schedule your free on-site consultation.

Written by the team at Meridian Windows and Doors West Palm Beach, authorized ViewLux installation partner serving West Palm Beach, FL.
